Tips to Prevent Streaking on 2-D Gels

The most common problem encountered with 2-D gels is protein streaking, whether in the horizontal (Figure 1) or vertical (Figure 2) direction. This streaking effect can be due to a number of different factors, but, in keeping with the logic of this technique, generally horizontal streaks are due to problems with isoelectric focusing, while vertical streaks are due to poor protein separation during sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE). This article focuses on the most common causes of both horizontal and vertical streaking on gels, and offers suggestions to prevent them.

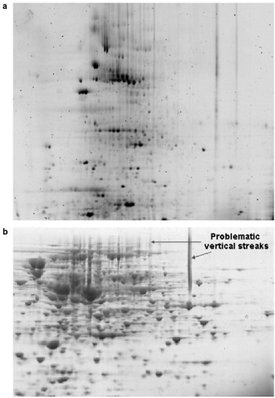

Figure 2 - Examples of vertical streaking. a) Approximately 300 μg of E. coli protein loaded onto a 17-cm pH 3–10 ReadyStrip™ IPG strip (Bio-Rad). b) A prefractionated sample of Pseudomonas putida loaded onto a 17-cm pH 3–10 ReadyStrip IPG strip. Gel image was annotated using The Discovery Series™ PDQuest™ 2-D analysis software (Bio-Rad).

Figure 1 - Example of horizontal streaking and its prevention. Detergent was effectively removed by the ReadyPrep™ 2-D cleanup kit (catalog #163-2130, Bio-Rad Laboratories, Hercules, CA), leading to improved 2-D SDS-PAGE separation. E. coli extracts were spiked with 1% SDS. a) Untreated sample. b) Sample treated with the ReadyPrep 2-D cleanup kit.

Causes of horizontal streaking

Incomplete or excessive isoelectric focusing

All protein samples are different and require different strategies for good isoelectric focusing; consequently, finding the optimal focusing conditions is necessary. Suggested focusing protocols for the various immobilized pH gradient (IPG) strip lengths and pH ranges are supplied with ReadyStrip IPG strips. These make a good starting point for optimization. However, incomplete focusing or overfocusing is always a possibility, and both can lead to horizontal streaking.

As would be expected, incomplete focusing results in horizontal streaks, since the proteins have not had the opportunity to be focused into discrete spots. Often overlooked as a potential explanation for incomplete focusing is the focusing of different samples, different pH range IPG strips, or both at the same time. Conventional IEF cells set a total current limit for the whole tray; thus, if one particular sample is more conductive, it will draw most of the current and hence decrease the focusing rate of the other strips in the tray. Therefore, samples with very different conductivities should be run separately.

In general, overfocusing is not as much of a problem as underfocusing. Overfocusing is not an issue up to about 100,000 V/hr, but above this level, the potential for electroosmosis can result in water and protein movement in the IPG strip and horizontal streaks.

Protein overloading

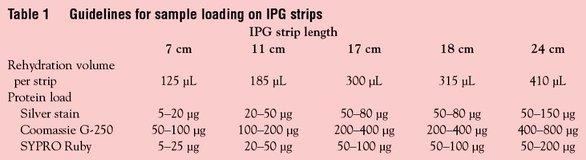

The total amount of protein to load onto an IPG strip usually depends on the length of the strip and the stain that will be used to visualize the results (see Table 1). Certain circumstances require additional consideration, such as when particular proteins constitute a large percentage of the total protein. This is the case with serum albumin, which makes up 70–90% of total serum protein. Loading the recommended amount of protein likely would obscure many other proteins, because they would be masked by albumin. Under these circumstances, users should resist compensating by loading more protein—this could worsen the horizontal streaking. Instead, the serum albumin can be removed using Aurum™ Affi-Gel® Blue mini columns (catalog #732-6708, Bio-Rad) and then the recommended amount of protein loaded.

High protein loads, which result from loading too much protein into sample cups during cup loading, or from using IPG strips for preparative runs, can allow protein aggregation. This may result in protein precipitation at a particular protein’s isoelectric point (pI fallout), which leads to horizontal streaking. A slight increase in the IPG strip rehydration volume (by ~10%) may result in improved focusing. The suggestions described below for using reduction–alkylation and stronger detergents can also help to reduce protein–protein interactions and thus some of these problems.

Sample preparation problems

The most common cause of horizontal streaking is a problem with sample preparation. Any contaminant with a net ionic charge will affect isoelectric focusing and lead to horizontal streaking.1 Common contaminants include salt, detergents (see Figure 1), peptides, nucleic acids, lipids, and phenolic compounds. Ionic contaminants usually cause high current (around 50 μA) during isoelectric focusing. This current will limit the voltage of the isoelectric focusing cell and increase isoelectric focusing run times, since the voltage will not increase until the ionic contaminants have been depleted, a process that takes many hours.2 This generally leads to underfocusing and streaking. Ionic contaminants can also cause excessive IPG strip heating or strip burning. To alleviate these problems, salt can be removed from the sample using dialysis, desalting columns, or the ReadyPrep 2-D cleanup kit, which removes salts and most other ionic contaminants. Certain charged detergents, such as SDS, can coat proteins and drastically alter their net charge, ultimately affecting their isoelectric point and leading to streaking and loss of sample from the IPG strip.

Nucleic acid contamination of samples can also contribute to horizontal streaking.3 Many proteins bind nucleic acids, which can generate a mixed population of protein–nucleic acid species, each with distinct isoelectric points. Nucleic acids can be removed from samples by treating the samples with nucleases prior to IEF.4 However, these nucleases will be present in the 2-D gel. Alternatively, nucleic acids can be removed by ultracentrifugation in the presence of spermine.5

Polysaccharides that contain sialic acid and are negatively charged can produce horizontal streaking artifacts similar to those seen with nucleic acids. Uncharged polysaccharides can also cause streaking by blocking the pores of the gel, preventing sample entry into the IPG strip, and physically impeding focusing. Ultracentrifugation is often sufficient to remove carbohydrates.

In addition, carbamylation of polypeptides can generate charge heterogeneity in individual proteins, and although discrete trains of spots are often formed, under certain conditions—such as when broad pH gradients are used—smearing between spots can occur. Protein samples should be prepared using high-purity urea and should not be heated above 30 °C.

The last cause of horizontal streaking related to sample preparation is disulfide bond formation.6 When disulfide bonds occur in a protein sample prior to 2-D, they occur randomly intra- and intermolecularly. Disulfide bond formation creates various protein configurations, including minor isoelectric point variants (appearing on a 2-D gel as a widening of a single protein spot) and multimers of the same protein (appearing as streaking tails on spots, phantom spots, missing spots, and smearing). Preventing disulfide bond formation eliminates these artifacts. Disulfide bond artifacts are particularly problematic in two instances: 1) analysis of basic proteins, and 2) use of longer IPG strips. Horizontal streaking due to disulfide bond formation can be reduced using the ReadyPrep reduction–alkylation kit (catalog #163-2090, Bio-Rad) in conjunction with cup loading of IPG strips.7

Poor protein solubilization

Failure to completely solubilize all the proteins in a sample will result in horizontal streaking. The main components of standard sample buffers used in 2-D electrophoresis to maintain sample solubility are urea, a nonionic detergent such as Nonidet P-40 (NP-40) (Shell International Petroleum Co., Houston, TX) or a zwitterionic detergent such as 3-[3-cholamidopropyl) dimethyl-ammonio]-1-propanesulfonate (CHAPS), and a reducing agent such as dithiothreitol (DTT). Other compounds can be included in this mixture, for example, thiourea,8 or novel detergents, especially those in the amido sulfobetaine family, such as amidosulfobetaine-14 (ASB-14),5 to improve the solubilization of membrane proteins. The combined effect of these reagents is to reduce horizontal streaking by better solvating the hydrophobic regions on the proteins and diminishing aggregation due either to hydrogen bonding among proteins or to interactions with the IPG gel matrix. Finally, it is always good practice to remove insoluble protein complexes by centrifugation prior to isoelectric focusing to prevent them from interfering with the entry of other proteins into the gel matrix.

Electroendoosmotic flow

Mainly a problem during isoelectric focusing of basic proteins, electroendoosmotic flow can contribute to horizontal streaking due to water transport from the cathode to the anode. The water flow slows protein migration in the opposite direction and can also cause strip dehydration at the cathode end. Solutions to this problem include replacing the paper wick at the cathode with a fresh water-soaked wick or adding organic modifiers such as glycerol, isopropyl alcohol, or methylcellulose to the rehydration/sample solution.3

Causes of vertical streaking

Poor protein solubility

Following the first-dimension separation, all of the proteins have moved to their isoelectric points and carry no net charge. The ionic strength of the medium is also very low, because small ions have all migrated out of the first-dimension strip. Proteins generally have minimal solubility under these conditions and are often precipitated within the gel matrix despite the presence of detergents, chaotropic agents, and other solubilizing additives. The major purpose of the equilibration step following the first dimension is to coat the proteins with SDS, giving them a negative charge and making them soluble again so that they may enter the second-dimension gel.

Protein overloading

When a large quantity of protein is loaded, or when the sample contains proteins of particularly high abundance, resolubilization during equilibration may be incomplete, resulting in vertical streaking and tailing of the most intense protein spots. This can be prevented by limiting the amount of protein loaded onto the first-dimension strip. It is often possible to compensate for a lower protein load by using a more sensitive staining technique (for example, silver stain, catalog #161-0449 [Bio-Rad] or SYPRO Ruby protein gel stain [Invitrogen, Carlsbad, CA], catalog #170-3125, instead of Coomassie blue stain [BASF Aktiengesellschaft, Berlin, Germany]). In some cases, vertical streaking of abundant proteins can be prevented by prolonging the equilibration time (see “Ineffective equilibration,” below).

Overfocusing

Isoelectric precipitation increases with focusing time; therefore, vertical streaking may be minimized by ensuring that first-dimension isoelectric focusing is not conducted for any longer than necessary.

Ineffective equilibration

Equilibration should be carried out in a manner that guarantees good penetration of SDS and hence protein solubilization. The equilibration tray should be shaken or rocked to ensure continual movement of solution. Equilibration may be prolonged as long as 45 min if necessary. This may result in the loss of some small polypeptides (<15 kD), but loss of larger proteins is generally insignificant even with prolonged equilibration. SDS should be present at a concentration of at least 2% (wt/vol), particularly if high (>2%) concentrations of detergent were used in the first dimension. Other components of the equilibration solution are important as well. The solution should be buffered, particularly if an alkylation step is employed, because iodoacetamide treatment generates acid. The optimal pH for equilibration is 8.8. Glycerol, which should be present at a concentration of at least 20% (vol/vol), is a particularly important component of the equilibration solution, and its omission will result in vertical streaking.

Protein oxidation

Oxidative crosslinking or protein refolding should be prevented during all steps of the 2-D process; protein oxidation during the second-dimension separation can result in vertical streaking. Treatment with the ReadyPrep reduction–alkylation kit prior to first-dimension focusing can block cysteine sulfhydryl groups and prevent their reoxidation. If the sample is not alkylated, alkylation should be performed in a second equilibration step with 2.5% iodoacetamide. If alkylation is not desired, a sufficient quantity of DTT, at least 1%, should be present in the equilibration solution. The DTT should be added to the equilibration solution immediately before use, since it may oxidize if stored. DTT is negatively charged under second-dimension conditions and will migrate ahead of proteins in the gel, ensuring a reducing environment during the separation.

Poor reagent quality or improperly prepared solutions

Vertical streaking and other second-dimension problems often result from poor reagent quality or from mistakes in solution preparation. Care should be taken to use the highest-quality reagents (for example, ReadyPrep proteomics grade water, catalog #163-2091 [Bio-Rad]), and the pH of all buffers should be verified. Precast second-dimension gels should be used before their expiration date. Poor-quality acrylamide or old acrylamide stock solutions can cause vertical streaking due to an incompletely polymerized second-dimension gel. Reusing electrophoresis running buffer can result in poor separation and vertical streaking due to the depletion of ions and SDS in the running buffer. This practice should be avoided if vertical streaking is a persistent problem.

Poor placement of the IPG strip on the second-dimension gel

Vertical streaking can also be the result of gaps between the IPG strip and the second-dimension gel or damage to the IPG strip during application. The second-dimension gel should have a straight, level top edge, and care should be taken that the IPG strip is in direct contact with the second-dimension gel along its entire length. The IPG strip should not be twisted during placement. This can be prevented by ensuring that the plastic backing of the IPG strip is pressed firmly against one of the second-dimension gel plates. An agarose overlay should be used to prevent the IPG strip from coming loose or moving. Bubbles in the agarose overlay should be minimized.

Uneven pore size in the IPG strip following isoelectric focusing

After the first-dimension separation, there are often variations in the thickness of the IPG strip. This swelling or thinning of some sections is caused by water movement in the gel.1 In thinner sections of the IPG strip, the gel pore size may have been reduced to the point that protein migration out of the IPG strips will be slowed or prevented. This can result in vertical streaks or, in severe cases, complete protein loss from trapping within the IPG strip. Water movement during first-dimension separation can be minimized by ensuring that the sample is well desalted and that focusing is not carried out any longer than necessary.

Vertical gaps or vertical blank stripes

Vertical gaps or blank stripes, for the purposes of this discussion, are different from vertical streaking. These problems can be due to trapped air bubbles in the agarose overlay on the IPG strip, excessive DTT (>50 mM) in the IPG sample buffer, or a compromised IPG strip (either insufficiently rehydrated or torn during handling). Blank stripes near the electrode, especially the cathode, can be caused by a buildup of salt.

Summary

As alluded to at the beginning of this paper, streaking on 2-D gels is a common and complex problem. The authors have identified useful remedies for some of the main causes of such streaking, although they have not presented an exhaustive list of the potential causes. In addition, the great deal of variation in the characteristics of protein samples means that each sample will behave uniquely. With such variety in the composition of protein samples, the sample preparation step becomes important to prevent frequently observed streaking patterns; this application note has focused on a variety of approaches to help achieve this.

References

  1. Rabilloud T. Proteome research: two-dimensional gel electrophoresis and identification methods. Berlin: Springer, 2000.
  2. Rémy A. Focusing strategy and influence of conductivity on isoelectric focusing in immobilized pH gradients. Bio-Rad bulletin 2778, 2000.
  3. Görg A, Obermaier C, Boguth G, Csordas A, Diaz JJ, Madjar JJ. Very alkaline immobilized pH gradients for two-dimensional electrophoresis of ribosomal and nuclear proteins. Electrophoresis 1997; 18:328–37.
  4. Garfin D, Heerdt L, eds. 2-D electrophoresis for proteomics: a methods and product manual. Bio-Rad bulletin 2651, 2000.
  5. Rabilloud T. Solubilization of proteins for electrophoretic analyses. Electrophoresis 1996; 17:813–29.
  6. Walsh BJ, Herbert B. Setting up two-dimensional gel electrophoresis for proteome projects. ABRF News 1998; 9:11–21.
  7. Bio-Rad Laboratories. Cup loading tray for the PROTEAN IEF cell instruction manual. Bio-Rad bulletin 4006216, 2000.
  8. Rabilloud T. Use of thiourea to increase the solubility of membrane proteins in two-dimensional electrophoresis. Electrophoresis 1998; 19:758–60.

Dr. Berkelman is Senior Staff Scientist; Ms. Brubacher is Senior Product Manager; Dr. Chang is no longer with the company, but during her tenure was a Senior Technical Support Specialist focused in the area of proteomics; Dr. Cross is Northern European Product Manager for Protein Technologies; and Dr. Strong is R&D Group Leader, Bio-Rad Laboratories, Inc., 2000 Alfred Nobel Dr., Hercules, CA 94547, U.S.A.; tel.: 510-741-1000; fax: 510-741-5800; home page: www.expressionproteomics.com.
