2-D in a Day: A Two-Dimensional Gel Electrophoresis Work Flow Completed in Under Five Hours

While O’Farrell1 first described two-dimensional electrophoresis (2DE) of proteins 35 years ago, it remains one of the most widely used tools in proteomics today. Continuing refinements of 2DE, particularly the development of immobilized pH gradients,2 new surfactants that increase and maintain protein solubility, 3 and sample fractionation,4 have further increased the utility of the method.

Consider that immobilized pH gradient (IPG) strips are presently capable of separating proteins differing in charge by 0.002 isoelectric point (pI) units such that thousands of proteins can theoretically be resolved over the pH 3–10 range. This hypothetical number of separated proteins is nearly squared when a second dimension of electrophoresis is introduced, so that the number of proteins that can be arrayed by 2DE extends into the tens of thousands.5

Despite these benefits, 2DE is generally regarded as procedurally complex and often irreproducible, even considered a “black art” by some, and frequently includes lengthy electrophoresis times culminating over two days. It may be necessary to perform isoelectric focusing (IEF) overnight, further protracting the procedure. This paper describes a microprocessor-controlled IEF unit from Hoefer, Inc. (Holliston, MA) in which highly reproducible IEF of proteins is completed in less than 3 hr, enabling both dimensions of 2DE to be completed in approximately 5 hr.

Materials and methods

Materials

IPG BlueStrips were from Serva Electrophoresis GmbH (Heidelberg, Germany). Lyophilized Escherichia coli strain K12, broad-range protease inhibitor cocktail (4-(2-aminoethyl) benzenesulfonyl fluoride hydrochloride E-64, bestatin, leupeptin, aprotinin, ethylenediaminetetraacetic acid [EDTA]), and tributylphosphine (TBP) were from Sigma-Aldrich (St. Louis, MO). The B-163 conductivity meter was from Horiba (Kyoto, Japan). AG501- X8 ion-exchange resin was from Bio-Rad (Hercules, CA). Cresol purple was from USBiochemicals (Cleveland, OH). All other reagents used were from Hoefer, Inc.

Sample preparation

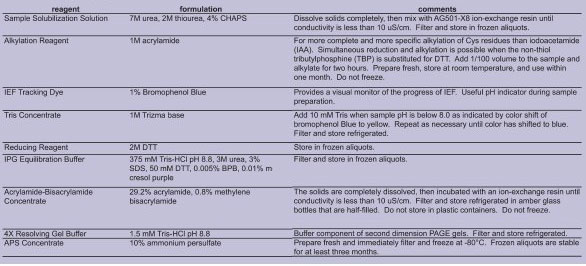

Table 1 - Reagent preparation for IEF and 2-DE

Three hundred milligrams of lyophilized E. coli was suspended in 10 mL of sample solubilization reagent (prepared as described in Table 1) followed by the addition of 200 μL of 50× broad-range protease inhibitor cocktail and 250 μL of 200 mM TBP. The suspension was sonicated for 40× 1-sec cycles using a Sonicator 450 (Branson Ultrasonics, Danbury, CT) with microtip probe at 70% maximum power. The proteins were alkylated for 2 hr following the addition of 10 mM acrylamide. The alkylation reaction was quenched by the addition of concentrated dithiothreitol (DTT) to a final concentration of 50 mM.6

Proteins were precipitated by the addition of 86% acetone, followed by incubation at room temperature for 2 hr with intermittent vortexing. The flocculent was pelleted by centrifugation at 10,000 RCF for 10 min. The pelleted proteins were resuspended in 10 mL of fresh sample solubilization reagent that was ion-exchanged with AG501-X8 ion-exchange resin until conductivity was ≤10 μS/cm. The sample solubilization reagent was filtered to remove the resin, and 50 mM DTT was added immediately prior to use. Protein concentration was estimated to be 10 mg/mL using the Hoefer Protein Determination Reagent. Samples were diluted to 0.65 or 1.3 mg/mL in the ion-exchanged reagent.

Isoelectric focusing in the Hoefer IEF100 unit

IPG BlueStrips, 7 cm, pH 4–7 and 3–10 NL, were rehydrated overnight with 140 μL of each test solution (either 0.65 or 1.3 mg/mL) in the provided rehydration trays. To prevent drying, the trays were sealed in zipper storage bags with a dampened paper towel to maintain a humid environment. (Alternatively, the hydrating strips can be protected from drying by overlaying with a small amount of mineral oil.)

Strips were adhered gel side up to the IEF100 running trays with a drop of mineral oil. Wicks dampened with Milli-Q H2O (Millipore Corp., Billerica, MA) were blotted nearly dry and placed with 2–3 mm overlapping each end of the IPG strip. Electrodes were positioned and the running tray was flooded with mineral oil. IEF was performed using 0–6000 V or 0–12,000 V voltage gradients over 1 hr, followed by 12,000 V constant voltage. Current was limited at 25 μA per strip. Power was limited at 0.5 W per strip. Temperature was 20° ± 0.5 °C.

Staining of IPG strips

Table 2 - Coomassie stain for IPG strips

IPG strips were removed during the time course and fixed in 35% methanol, 10% acetic acid. IPG strips were stained with Coomassie brilliant blue (CBB) as described in Table 2.

Second-dimension polyacrylamide gel electrophoresis (PAGE)

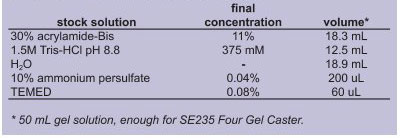

Table 3 - Casting second-dimension polyacrylamide gels

Polyacrylamide gels were cast in the Hoefer SE235 Four Gel Multicaster as described in Table 3. A sharp interface was produced by overlaying the unpolymerized gels with 25% isopropanol. Catalyst concentrations were adjusted to allow polymerization in 15–20 min, after which the gel surface was rinsed with distilled water. Immediately following IEF, the IPG strips were each equilibrated 2× for 10 min in IPG equilibration buffer (Table 1). The strips were placed on the polyacrylamide gels without an agarose overlay. Gels were electrophoresed on the Hoefer SE260 Mighty Small Vertical Electrophoresis Unit at 120 V constant voltage for 60 min.

Staining of second-dimension gels

Polyacrylamide gels were stained with colloidal CBB stain as described by Wijte et al.7

Results and discussion

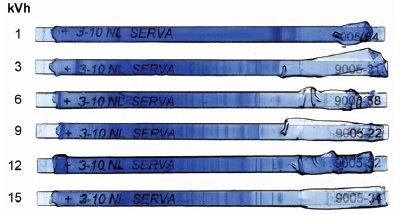

Figure 1 - IEF of E. coli proteins on 7-cm IPG strips, pH 3–10 NL, run over a time course in the IEF100.

Conductivity of the E. coli standard sample (10 mg/mL) was 159 μS/cm. The diluted sample (0.65 mg/mL) was 45 μS/cm. All dilutions were made in ion-exchanged sample solubilization solution prepared as described in Table 1. Immediately prior to use, 50 mM DTT was added.

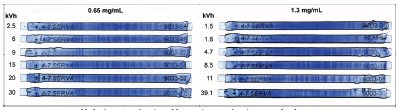

Figure 2 - IEF of light (0.65 mg/mL) and heavy (1.3 mg/mL) protein loads on 7-cm IPG strips, pH 4–7, run over a time course in two IEF100 units.

From time course studies, it was judged that IEF was completed in 6–8 kVh. At low protein loads (0.6 mg/mL) many bands were focused within the first hour of IEF, suggesting that many samples might be focused in less time (Figure 1). The heavier protein loads (1.3 mg/mL) required only slightly longer run times (Figure 2), which could be completed in the IEF100 in approximately 2 hr. The rapid focusing is attributed to the careful attention given to preparing the sample with low conductivity, since the failure to remove salts from the sample results in initially high strip conductivity and delays IEF by causing a lag in the voltage gradient.

Conclusion

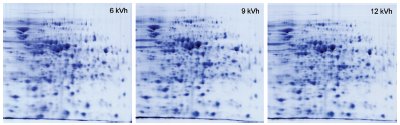

Figure 3 - Time course IEF (6, 9, and 12 kVh) on 7-cm IPG strips, pH 4–7, evaluated by 2DE on the SE260 Mighty Small Vertical Electrophoresis Unit.

A work flow is described that enables 2DE to be completed within 5 hr (Figure 3). Using the Hoefer IEF100 unit, rapid focusing of proteins is possible at voltages up to 12,000 V with short IEF times reported for 7-cm IPG strips. When attention is given to sample preparation, low initial conductivity of the IPG strips enables maximum voltage to be reached in 1.5–2 hr. When performed in the Hoefer SE260 Mighty Small Vertical Electrophoresis Unit, second-dimension PAGE is completed within 90 min. The prescribed “2-D in a day” can be easily expanded to include overlapping IEF and PAGE runs to further increase throughput, all completed within a regular work day.

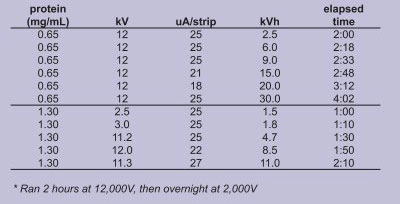

Table 4 - Time course IEF at different protein loads on 4–7 IPG

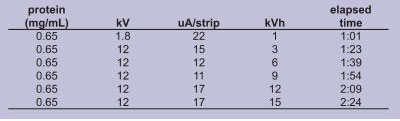

Table 5 - Time course IEF at lower protein load on 3–10 NL IPG

Most manufacturers recommend that IEF of 7-cm IPG strips in their instruments be performed at voltages not exceeding 3500 V and 4000 V, respectively, unlike the IEF100, which runs at 12,000 V. In the IEF100, optimized protocols eliminate the need to program multiple steps. A single step in which maximum voltage is set to 12,000 V results in a natural voltage gradient where voltage climbs at a rate limited by the programmed current limit. Once maximum voltage is reached, 3 kVh are accumulated every 15 min at 12,000 V such that IEF in the IEF100 is at least three times faster than previously described protocols. Depending on the initial sample conductivity, the voltage ramp to 12,000 V is generally reached in less than 2 hr, roughly the same time required for competing devices to reach much lower voltage maximums. As exemplified in Tables 4 and 5, 6 kVh were accumulated in less than 2 hr during the ramp to 12,000 V, with 9 and 12 total kVh being reached 15 and 30 min later.

The utility of the 12,000-V capacity of the Hoefer IEF100 will be further realized when running 18- and 24-cm IPG strips, which often require run times in excess of 100 kVh.

References

  1. O’Farrell, P.H. High resolution two-dimensional electrophoresis of proteins. J. Biol. Chem.1975, 250, 4007–21.
  2. Righetti, P.G.; Stoyanov, A.V.; Zhukov, M.Y. The Proteome Revisited: Theory and Practice of All Relevant Electrophoretic Steps; Elsevier: Amsterdam, 2001; pp 295–7.
  3. Rabilloud, T.; Blisnick, T.; Heller, M.; Luche S.; Aebersold, R.; Lunardi, J.; Braun-Breton, C. Electrophoresis1999, 20, 3603–10.
  4. Smejkal, G.B.; Lazarev, A. Solution phase isoelectric fractionation in the multi-compartment electrolyzer: a divide and conquer strategy for the analysis of complex proteomes. Briefings in Functional Genomics and Proteomics 2005, 4, 76–81.
  5. Smejkal, G.B. The Coomassie chronicles: past, present, and future perspectives in polyacrylamide gel staining. Expert Rev. Proteomics2004, 1, 381–7.
  6. Smejkal, G.B.; Li, C.; Robinson, M.H.; Lazarev, A.; Lawrence, N.; Chernokalskaya, E. Simultaneous reduction and alkylation of protein disulfides in a centrifugal ultrafiltration device prior to two-dimensional gel electrophoresis. J. Proteomic Res.2006, 5, 983–7.
  7. Wijte, D.; De Jong, A.; Mol, M.; Van Baar, B.; Heck, A. ProteomIQ Blue, a potent post-stain for the visualization and subsequent mass spectrometry based identification of fluorescent stained proteins on 2D-gels. J. Proteome Res. 2006, 5, 2033–8.
